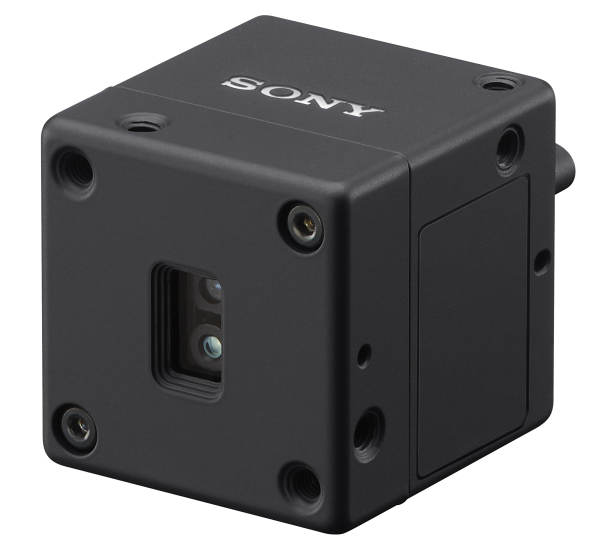

The Sony AS-DT1 is the world’s smallest and lightest LiDAR depth sensor, delivering high-precision 3D depth sensing in a form factor optimized for weight-sensitive applications such as drones, mobile robots, and autonomous ground vehicles.
Key Features
- World’s smallest and lightest LiDAR depth sensor: 29 x 29 x 31 mm, 50 g
- Long detection range: 40 m indoor / 20 m outdoor (at 15 fps, 50% reflection)
- High-precision: ±5 cm accuracy at 10 m
- 576 detection points (24 x 24 SPAD array)
- Frame rate: 30 fps standard, 15 fps in maximum range mode
- Field of view: 30°, depth range 0.3 – 40 m
- Advanced SPAD (Single Photon Avalanche Diode) sensor technology
- PoE power (DC 12V)
- IEEE1588 time synchronization, hardware/software trigger
- Partial scan/binning, noise filtering, shading/defect correction
Applications
Drone obstacle detection and terrain mapping, collaborative robot (cobot) safety zones, autonomous guided vehicle (AGV) navigation, industrial metrology, 3D bin picking assistance, and any application where space and weight constraints are critical.
Why 3HLE?
As a Swiss authorized Sony Industrial distributor, 3HLE Automation & Robotics provides complete AS-DT1 integration — from SDK deployment to turnkey drone/robotic systems. Contact us for availability, custom integration, and volume pricing.
